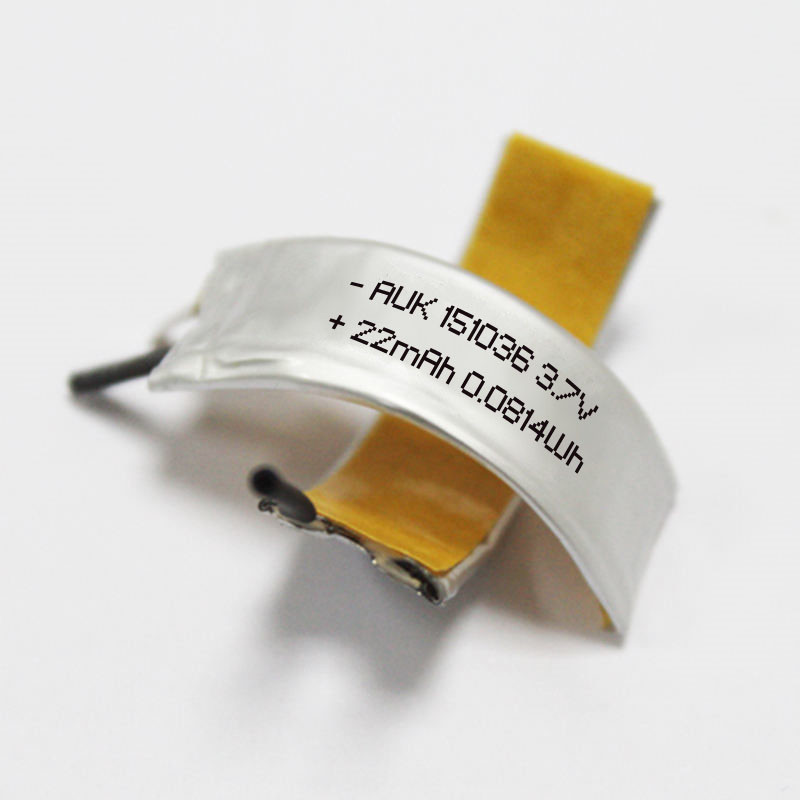

Rechargeable Flexible Curved Lithium Polymer Battery Ultra Thin 3.7V 22mAh 151036 1.5mmLipo Battery For Wearable Devices

Ask Lasest Price
Brand Name :	AUK
Model Number :	151036
Certification :	MSDS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/day
Delivery Time :	5-8 Work Days

Add to Cart

Product Details
Company Profile

Rechargeable Flexible Curved Lithium Polymer Battery Ultra Thin 3.7V 22mAh 151036 1.5mmLipo Battery For Wearable Devices

Rechargeable Flexible Curved Lithium Polymer Battery Ultra Thin 3.7V 22mAh 151036 1.5mmLipo Battery For Wearable Devices

Battery Specification

1. Mechanical Characteristics
Cell	151036	PCM	No
NTC	No	Weight	appr. 0.5 g
Configuration	1S1P	Demension	1.51036mm(MAX)
2. Electrical Specification
Capacity	22mAh	Nominal Voltage	3.7V
Energy	0.0814Wh	Internal Impedance	less than 300mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	22mAh	Max. Discharge Current	22mAh
Standard Charge Current	4.4mA	Standard Discharge Current	4.4mA
Charge Temp. Range	0℃ to 45℃	Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%
3. Cell protection
Overcharge Detection	-	Over discharge Detection	-
Overcurrent Detection	-	Short protection	-

Q: Can I have some samples for testing quality? ?

A: Yes, you can buy some samples of any our products for testing quality and market..

Q: Can I have lipo packs with custom logo label ??

A: Of course,you can have lipo packs with custom logo label ..

Q: Do you accept OEM/ODM lipo battery orders??

A: Yes ,we accept OEM/ODM lipo battery orders.We are factory and OEM/ODM order is welcome. Therefore please don’t hesitate to let us know if you have any ideas..

Other Ultra thin lipo battery as below:

No	Model	capacity(mAh)	Voltage(V)	Thickness(mm)	Width(mm)	Length(mm)
1	AUK041850	12	3.7	0.47	18.5	50.5
2	AUK042126	8	3.7	0.50	21.8	26.1
3	AUK042255	20	3.7	0.47	22.5	55.5
4	AUK042323	8	3.7	0.47	0.5	23.5
5	AUK043030	15	3.7	0.47	30.5	30.5
6	AUK043228	15	3.7	0.47	32.5	28.5
7	AUK043251	25	3.7	0.47	32.5	51.5
8	AUK043526	12	3.7	0.47	35.0	26.5
9	AUK072247	30	3.7	0.70	22.8	47.8
10	AUK072836	30	3.7	0.70	28.0	36.0
11	AUK082025	14	3.7	0.80	20.5	25.5
12	AUK083960	100	3.7	1.00	39.5	60.5
13	AUK085045	100	3.7	0.80	50.0	45.5
14	AUK10180270	3,000	3.7	1.00	180.0	270.0
15	AUK20180270	6,000	3.7	1.80	180.0	270.0
16	AUK2029110	400	3.7	2.00	29.5	110.0
