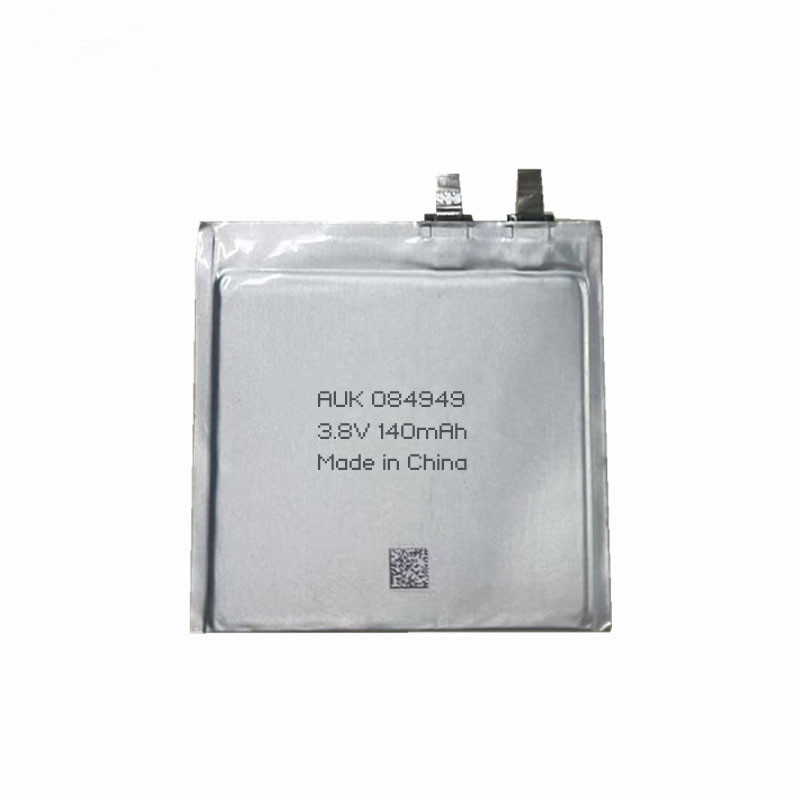

    3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

    Ask Lasest Price
    Brand Name : AUK
    Model Number : 084949
    Certification : MSDS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000pcs/day
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949

    3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949
    3.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 0849493.7V Ultra Thin Battery Cell For Smart Card 0.5mm 0.8mm 1mm 2mm Thickness Small Lipo Battery 20mah 8mah 140mah 084949
    1. Mechanical Characteristics
    Cell
    084949
    PCM
    No
    NTC
    No
    Weight
    appr. 2.8 g
    Configuration
    1S1P
    Demension
    0.8*49*49mm(MAX)
    2. Electrical Specification
    Capacity
    140mAh
    Nominal Voltage
    3.7V
    Energy
    0.518Wh
    Internal Impedance
    less than 300mΩ
    Max. Charge Voltage
    4.2V
    Discharge Cut Off
    2.75V
    Max. Charge Current
    140mAh
    Max. Discharge Current
    140mAh
    Standard Charge Current
    28mA
    Standard Discharge Current
    28mA
    Charge Temp. Range
    0℃ to 45℃
    Discharge Temp. Range
    -20℃ to 60℃
    Storage Temp. Range
    1 year at -20℃ to +30℃
    Cycle life
    100 cycles ≥92%
    3 months at -20℃ to +45℃
    300 cycles ≥88%
    1 month at -20℃ to +60℃
    500 cycles ≥80%
    3. Cell protection
    Overcharge Detection
    -
    Over discharge Detection
    -
    Overcurrent Detection
    -
    Short protection
    Battery size 0.8×49×49mm
    Other Ultra thin lipo battery as below:
    NoModelcapacity(mAh)Voltage(V)Thickness(mm)Width(mm)Length(mm)
    1AUK041850123.70.4718.550.5
    2AUK04212683.70.5021.826.1
    3AUK042255203.70.4722.555.5
    4AUK04232383.70.470.523.5
    5AUK043030153.70.4730.530.5
    6AUK043228153.70.4732.528.5
    7AUK043251253.70.4732.551.5
    8AUK043526123.70.4735.026.5
    9AUK072247303.70.7022.847.8
    10AUK072836303.70.7028.036.0
    11AUK082025143.70.8020.525.5
    12AUK0839601003.71.0039.560.5
    13AUK0850451003.70.8050.045.5
    14AUK101802703,0003.71.00180.0270.0
    15AUK201802706,0003.71.80180.0270.0
    16AUK20291104003.72.0029.5110.0
