Camera LiPo Cell Battery 4.44Wh 803443 LiPo Battery 3.7V 1200mAh

Ask Lasest Price
Brand Name :	AUK
Model Number :	803443 Or Customize
Certification :	MSDS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/day
Delivery Time :	5-8 Work Days

Add to Cart

Product Details
Company Profile

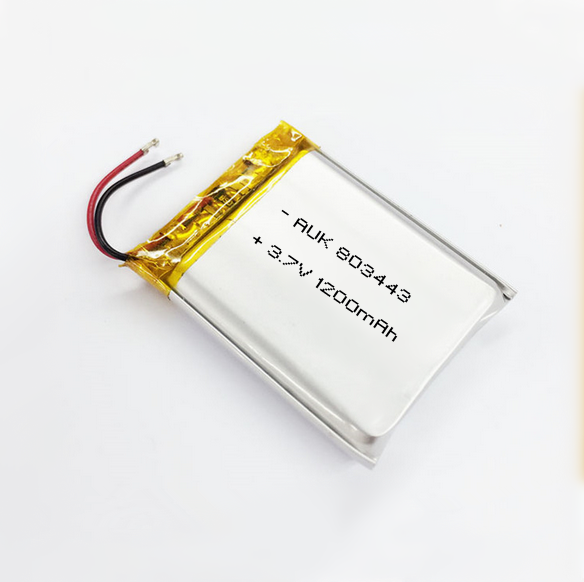

Camera LiPo Cell Battery 4.44Wh 803443 LiPo Battery 3.7V 1200mAh

Custom LiPo Battery 3.7V 1200mAh 4.44Wh AUK 803443 Lithium Lipo Cell For Camera

Description:

AUKPOWER Custom LiPo Battery AUK 803443 3.7V 1200mAh:

(1): AUK Custom lipo battery 3.7v 1200mah size is 8.0mm*34mm*43mm, rated voltage is 3.7v, charging voltage is 4.2V, rated capacity is 1200mAh, feel free to contact us if you have other size requests;

(2): After add PCB/PCM protection, size will be arounds 8.0mm*34mm*45mm;

(3): We can custom connectors by customers needed;

Electrical characteristics:

1. if your device still have a PCM protector board lie on motherboard of your device. it will can't work well.
please remove off this PCM from our this li battery. so this battery can work well.

2. if your old one li battery have a PCM board on top of li battery. please instead this old pcm to our new li battery . maybe our PCM board don't fit your device. each device there are different requirements with PCM board.

3. Standard Charging method :0.5C (constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C

4. Rated Capacity : The capacity means the discharge capacity of the cell, which is measured with discharge current of 0.2C with 3.0V cut-off voltage after standard charge.
5. Charging time :Standard Charging:3.0 hours(Ref.) ,Rapid charge: 2.0 hours(Ref.)
6. Max. charge current :1.0C
Max. discharge current :1.0C
Discharge cut-off voltage :3.0V
7. Operating temperature :Charging: -20℃~60℃ Discharging:-20℃~60℃
8. Storage temperature : -10℃~ +45℃
9. Cycle life: 600 cycles,Stable performance with 100% in house testing
10. Warranty: 18 Months
11. Test condition:
Charge:0.5C to 4.2V
Discharge:0.2C to 3.0V
70% or more of 1st cycle capacity at 0.2C discharge of Operation
Self-discharge :Residual capacity >90%
After the standard charging, storied the cells under the condition for 30 days, then measured the capacity with 0.2C till 3.0V

12:Temperature characteristics :
-20℃: ≥65%
23℃: 100%
60℃: ≥96%
---- According to item at 23±5℃.
----Capacity comparison at each temperature, measured with constant discharge current 0.2C with 3.0V cut-off. Percentage as an index of the capacity compared with 100% at 23℃
13 : Mechanical characteristics:
----- Vibration Test : No leakage / No fire
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz,the excursion of the vibration is 1.6mm.The cell shall be vibrated for 30 minutes per axis of XYZ axes.
----- Drop Test : No fire/ no leakage.
The cell is to be dropped from a height of meter twice onto concrete ground.

Custom Li-Po Battery Application:
