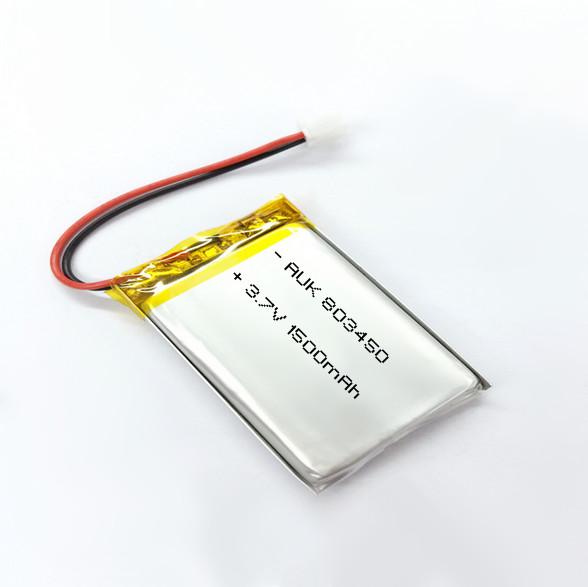

Lithium Polymer Battery 3.7V 1500mAh AUK For Pos Machine
v
Description:
1. Model code : AUK
2. Cell size : 8mm (thick) x 34mm (width) x 50mm (lenght)
3. Nominal capacity: 3.7v 1500mah
4. Built-in protection circuit PCM for prevent over charging or
over discharging.
5. Fit for Remote controller, IPTV Set top box remote controller,
LED lighting, Underwater lighting system, Bluetooth device, Mp3/Mp4
player, Safety lamp, GPS, Mobile phone, E-book, Power bank,
Portable DVD, Walkie taklie, Notebook, Tablet PC, PDA, Game player,
Pos machine, Consumer electronics device, Medical devices, Flash
lighting, Garden lighting, Karaoke, Digital Camera, Driving
recoder, Recording pen, Headset , Dashcam, Satnav, Navigation, Baby
monitor, Navigation, Car camera, Drift camera, Taillight, Bluetooth
speaker, Instrumentation, Smart lock, Medical device, Digital
light, Air purifier, Project Desigh ,Valve Index Controller ,etc.
6. Each Cell weight : 28 g
Attention: The AUK803450 lithium polymer battery maximum charge current: 1C
and Maximum discharge current: 1C Discharge cut-off voltage: 2.75V The discharge temperature: -20 degrees C~+60 degrees C Charging time: 2-4hrs (standard); 2hrs (fast) Protection function: over charge, over discharge, over current,
short circuit protection, over temperature protection
Details:
Type | AUK 803450 |
Standard Capacity | 1500MAH |
Nominal Voltage | 3.7V |
Connector (normal) | 1.0mm/1.25mm/2.0mm pitch |
Dimension Range with PCB | Length:52≤+2.5/-0.5mm |
Width:34≤±0.5mm |
Thickness:8.0≤±0.3mm |
PCM /PCB | Customized (Discharge cut-off voltage :3.0V or 2.4V) |
Delivery time | 5-7 days (in stock) 15- 35days (out of stock) |
Free samples | Yes |
AUK Other Hot Selling Lithium Polymer Battery Model for your Choose
NO. | Model | Capacity(mAh) | | NO. | Model | Capacity(mAh) |
1 | 252040 | 155 | | 14 | 601235 | 200 |
2 | 301738 | 160 | 15 | 302535 | 210 |
3 | 401730 | 160 | 16 | 551240 | 220 |
4 | 302035 | 160 | 17 | 701430 | 230 |
5 | 601230 | 170 | 18 | 382035 | 230 |
6 | 501530 | 170 | 19 | 342431 | 240 |
7 | 500850 | 180 | 20 | 252540 | 250 |
8 | 301850 | 180 | 21 | 651730 | 270 |
9 | 302530 | 180 | 22 | 382035 | 280 |
10 | 402030 | 180 | 23 | 402040 | 280 |
11 | 501240 | 190 | 24 | 501743 | 285 |
12 | 351455 | 200 | 25 | 601341 | 290 |
13 | 451635 | 200 | 26 | 253048 | 340 |
OEM/ODM All models lipo battery can be customized for you |
