3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah

Ask Lasest Price
Brand Name :	AUK
Model Number :	309095
Certification :	MSDS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/day
Delivery Time :	5-8 Work Days

Add to Cart

Product Details
Company Profile

3mm Ultra Thin LiPo Battery 500 Cycles Li Ion Battery 3.7v 2800mah

3mm Ultra Thin Lipo Battery 3.7V 2800mAh With ProtectiveFor Toy Equipment

Features:

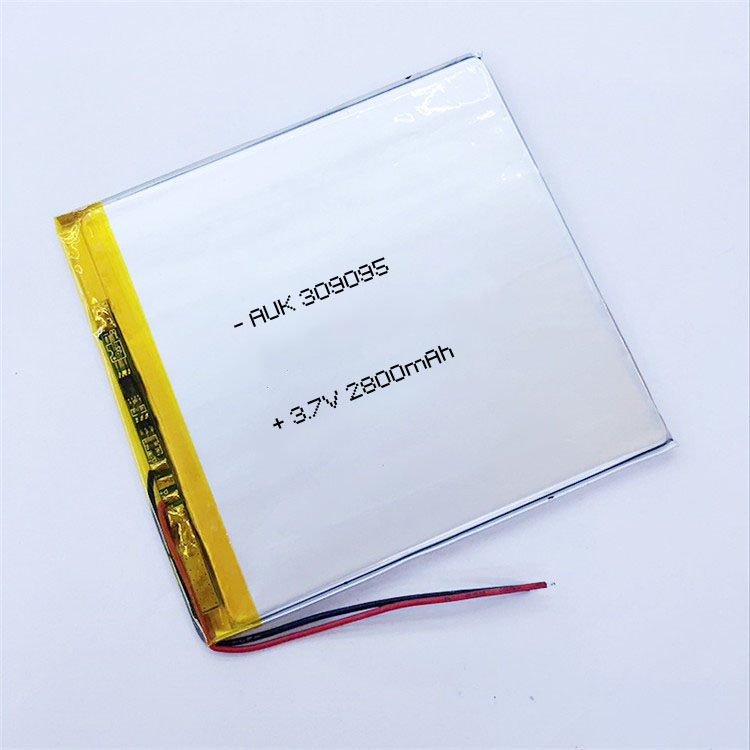

Ultra thin AUK 309095 3.7V 2800mAh Rechargeable Li-Po battery.

This ultra thin AUK 309095 cell is our AUK 3mm thick polymer with rated capacity over 2800mAh;
Built-in intelligent protection PCB charging module, effectively prevent over charge, over discharge, over current, short circuit.
it is widely used in walkie-talkie, PSP, electric toys, MP5, GPS, remote control, iPod, tablet, Bluetooth speaker, headset, camera, MID, POS machine, solar lamp and other devices with the same battery size and capacity.
Product features:
1. Over charge Protection
2. Over discharge protection
3. Overcurrent protection
4. Short protection

Standard Capacity: 2800mAh
Standard Voltage: 3.7V
Charge Current: 2800mAh To 4.2V
Charge Voltage :4.20+/-0.03V
Charge Time : About 3 hours
Discharge Cut off Voltage: 3.0V
Thickness: 3.0+/-0.5mm
Width: 90.0+/-1.0mm
Length: 95.0+/-1.0mm

PCM: Protect circuit module board(PCM) inside, with red(+) and black(-) wire lead out.

Rechargeable times: >500Composition: Lithium polymer

Standard charging method: 0.5C CC (constant current) charge to 4.25V, then CV
(constant voltage 4.2V) charge till charge current is less than or equal
to 0.05CThe maximum charge current: 1C

Maximum discharge current: 1C

Discharge cut-off voltage: 2.75V
The discharge temperature: -20 degrees C~+60 degrees C

Charging time: 2-4hrs (standard); 2hrs (fast)

Product Description

No.	Item	Specifications
1	Model	AUK309095 Lipo Battery
2	Size	3.09095mm (thicknesswidthlength)
3	Charge voltage	4.2V
4	Nominal voltage	3.7V
5	Nominal capacity	2800mAh
6	Charge current	Standard Charging:0.5C Rapid charge:1.0C
7	Standard Charging method	0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C
8	Charging time	Standard Charging:3.0hours(Ref.) Rapid charge:2hours(Ref.)
9	Max.charge current	1C
10	Max.discharge current	constant current 1C ,transient peak current 2C
11	Discharge cut-off voltage	2.45V or 3.0V
12	Operating temperature	-20℃ to 60℃
13	Storage temperature	25℃

Other Similar Ultra Thin Lipo Battery Model List

Type	Model	Capacity (mAh)	Voltage (V)	Thickness (mm)	Width (mm)	Length (mm)	Weight (g)
1215	301215	25	3.7	≤3.0	≤12.5	≤15.5	1.0
	401215	35	3.7	≤4.0	≤12.5	≤15.5	2.0
	501215	45	3.7	≤5.0	≤12.5	≤15.5	2.0
1220	301220	40	3.7	≤3.0	≤12.5	≤20.5	2.0
	401220	60	3.7	≤4.0	≤12.5	≤20.5	2.5
	451220	70	3.7	≤4.5	≤12.5	≤20.5	2.5
	501220	80	3.7	≤5.0	≤12.5	≤20.5	3.0
	601220	100	3.7	≤6.0	≤12.5	≤20.5	3.0
1225	401225	90	3.7	≤4.0	≤12.5	≤25.5	3.0
	501225	120	3.7	≤5.0	≤12.5	≤25.5	3.5
	601225	150	3.7	≤6.0	≤12.5	≤25.5	4.0
1230	401230	110	3.7	≤4.0	≤12.5	≤30.5	3.0
	501230	130	3.7	≤5.0	≤12.5	≤30.5	4.0
	601230	160	3.7	≤6.0	≤12.5	≤30.5	5.0
1235	301235	90	3.7	≤3.0	≤12.5	≤35.5	3.0
	401235	120	3.7	≤4.0	≤12.5	≤35.5	3.5
	501235	160	3.7	≤5.0	≤12.5	≤35.5	4.0
	601235	200	3.7	≤6.0	≤12.5	≤35.5	6.0
1245	401245	160	3.7	≤4.0	≤12.5	≤45.5	4.0
	501245	200	3.7	≤5.0	≤12.5	≤45.5	6.0
	601245	240	3.7	≤6.0	≤12.5	≤45.5	6.5
	701245	280	3.7	≤7.0	≤12.5	≤45.5	7.0
1430	401430	130	3.7	≤4.0	≤14.5	≤30.5	3.5
	451430	150	3.7	≤4.5	≤14.5	≤30.5	4.0
	551430	180	3.7	≤5.5	≤14.5	≤30.5	5.0
	651430	210	3.7	≤6.5	≤14.5	≤30.5	6.0
1435	501435	200	3.7	≤5.0	≤14.5	≤35.5	6.0
	601435	250	3.7	≤6.0	≤14.5	≤35.5	6.5
	701435	300	3.7	≤7.0	≤14.5	≤35.5	7.0
1530	501530	180	3.7	≤5.0	≤15.5	≤30.5	5.0
	601530	220	3.7	≤6.0	≤15.5	≤30.5	6.0
	701530	250	3.7	≤7.0	≤15.5	≤30.5	6.5
