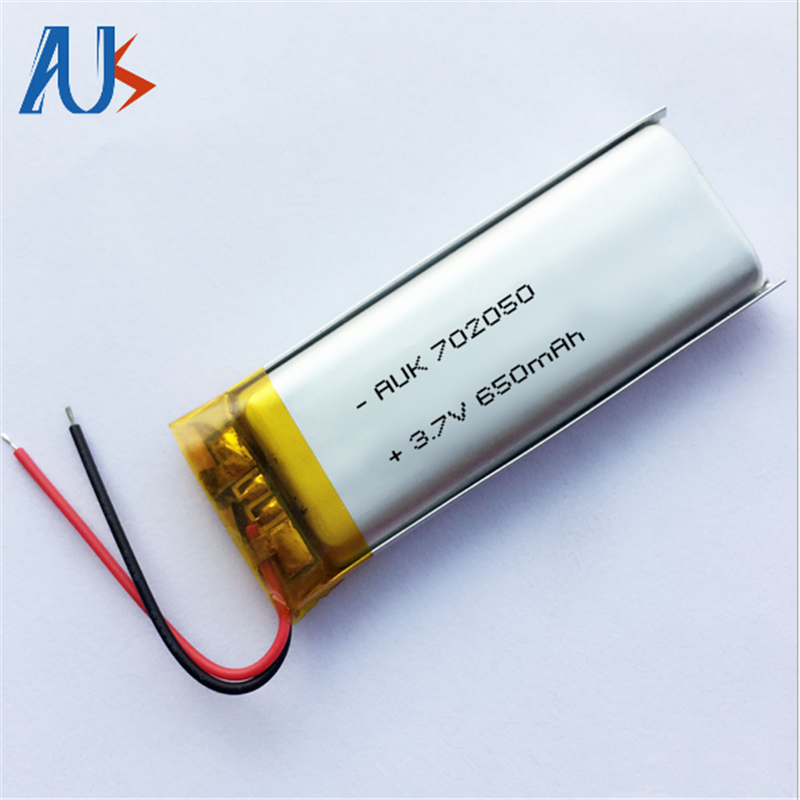

AUKPOWER Lithium Polymer Battery 3.7V 650mAh AUK 702050 Lithium
Cell
Description:
Lithium Polymer Battery 3.7v 650mAh;
Our AUKPOWER have various different size for the 3.7V 650mAh
Lithium Polymer battery, the common size can be 7mm*20mm*50mm, if
added PCB/PCM circuit, size will be arounds 7mm*20mm*52mm;
3.7V 650mAh Lithium Polymer Battery is top brand AUK new grade A
cell;
AUK 702050 Lithium Polymer Battery rated voltage 3.7V, charging Voltage 4.2V, rated capacity is
650mAh;
Lithium Polymer Battery AUK 702050 maximum charging and discharging current is 1C (650mA);
All Lithium Polymer Battery can add PCB/PCM protection circuit and lead
wires/connector as per customers requests.
Attention: The AUK702050 lithium polymer battery maximum charge current: 1C
and Maximum discharge current: 1C Discharge cut-off voltage: 2.75V The discharge temperature: -20 degrees C~+60 degrees C Charging time: 2-4hrs (standard); 2hrs (fast) Protection function: over charge, over discharge, over current,
short circuit protection, over temperature protection
Details:
Type | AUK 702050 |
Standard Capacity | 650MAH |
Nominal Voltage | 3.7V |
Connector (normal) | 1.0mm/1.25mm/2.0mm pitch |
Dimension Range with PCB | Length:52≤+2.5/-0.5mm |
Width:20≤±0.5mm |
Thickness:7.0≤±0.3mm |
PCM /PCB | Customized (Discharge cut-off voltage :3.0V or 2.4V) |
Delivery time | 5-7 days (in stock) 15- 35days (out of stock) |
Free samples | Yes |
AUK Other Hot Selling Lithium Polymer Battery Model for your Choose
NO. | Model | Capacity(mAh) | | NO. | Model | Capacity(mAh) |
1 | 252040 | 155 | | 14 | 601235 | 200 |
2 | 301738 | 160 | 15 | 302535 | 210 |
3 | 401730 | 160 | 16 | 551240 | 220 |
4 | 302035 | 160 | 17 | 701430 | 230 |
5 | 601230 | 170 | 18 | 382035 | 230 |
6 | 501530 | 170 | 19 | 342431 | 240 |
7 | 500850 | 180 | 20 | 252540 | 250 |
8 | 301850 | 180 | 21 | 651730 | 270 |
9 | 302530 | 180 | 22 | 382035 | 280 |
10 | 402030 | 180 | 23 | 402040 | 280 |
11 | 501240 | 190 | 24 | 501743 | 285 |
12 | 351455 | 200 | 25 | 601341 | 290 |
13 | 451635 | 200 | 26 | 253048 | 340 |
OEM/ODM All models lipo battery can be customized for you |
